TERMINAL FÊMEA GIRATÓRIA - ROSCA BSP 90 GRAUS SEDE BOLEADA ELKA
DESCRITIVO

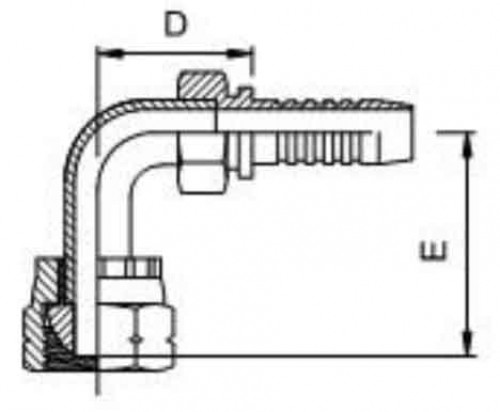

CÓDIGO BG: ROSCA MANG. SEXT. D E
BSP Porca mm mm
710.FB9044 1/4”-19 1/4” 11/16” 36,0 39,5
710.FB9066 3/8”-19 3/8” 7/8 “ 40,0 41,0
710.FB9086 1/2”-14 3/8” 1” 46,5 47,0
710.FB9088 1/2”-14 1/2” 1” 47,0 52,0
710.FB901616 1”-11 1” 1.1/2” 77,0 77,0
