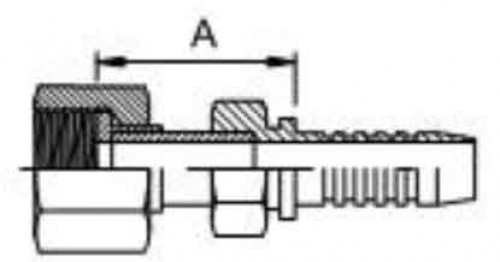

TERMINAL FÊMEA GIRATÓRIA - ROSCA UNF RETO SEDE PLANA PARA O’RING FACE SEAL ELKA
DESCRITIVO
CÓDIGO BG: ROSCA MANG. SEXT. A
UNF PORCA mm
710.FSP44 9/16”-18 1/4” 11/16” 29,0
710.FSP64 11/16”-16 1/4” 13/16” 32,5
710.FSP66 11/16”-16 3/8” 13/16” 33,5
710.FSP86 13/16”-16 3/8” 15/16” 37,5
710.FSP88 13/16”-16 1/2” 15/16” 38,0
710.FSP108 1”-14 1/2” 1.1/8” 42,0
710.FSP1010 1”-14 5/8” 1.1/8” 46,0
710.FSP1210 1.3/16”-12 5/8” 1.1/4” 47,0
710.FSP1212 1.3/16”-12 3/4” 1.1/4” 47,0
710.FSP1612 1.7/16”-12 3/4” 1.5/8” 48,5
710.FSP1616 1.7/16”-12 1” 1.5/8” 50,0
