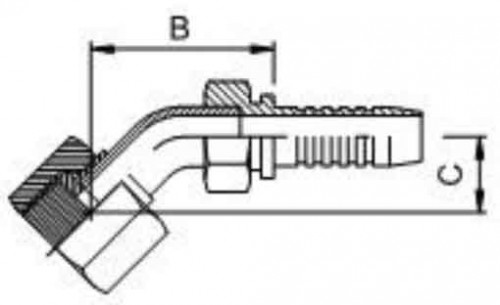

TERMINAL FÊMEA GIRATÓRIA - ROSCA UNF CURVA A 45 GRAUS SEDE PLANA PARA O’RING FACE SEAL ELKA
DESCRITIVO
CÓDIGO BG: ROSCA MANG. SEXT. B C
UNF PORCA mm mm
710.FSP4544 9/16”-18 1/4” 11/16” 38,0 13,0
710.FSP4564 11/16”-16 1/4” 13/16” 40,0 13,0
710.FSP4566 11/16”-16 3/8” 13/16” 45,0 13,0
710.FSP4586 13/16”-16 3/8” 15/16” 50,0 17,0
710.FSP4588 13/16”-16 1/2” 15/16” 50,5 17,0
710.FSP451616 1.7/16”-12 1” 1.5/8” 86,0 27,0
710.FSP45128 T.H. FSP45 12-8 FÊMEA ORS SEM CAPA
710.FSP451410 T.H. FSP45 14-10 FÊMEA ORS SEM CAPA
