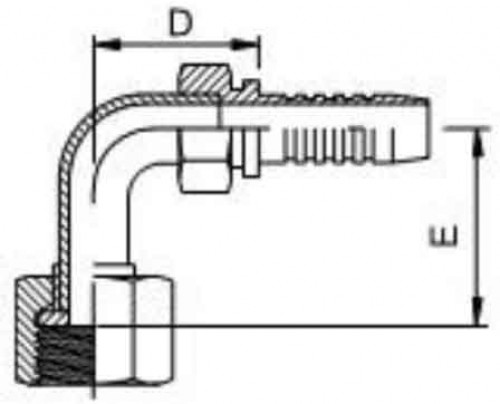

TERMINAL FÊMEA GIRATÓRIA - ROSCA UNF CURVA A 90 GRAUS SEDE PLANA PARA O’RING FACE SEAL ELKA
DESCRITIVO
CÓDIGO BG: ROSCA MANG. SEXT. D E
UNF PORCA mm mm
710.FSP9064 11/16”-16 1/4” 13/16” 40,0 33,0
710.FSP9066 11/16”-16 3/8” 13/16” 40,0 33,0
710.FSP9086 13/16”-16 3/8” 15/16” 45,0 37,0
710.FSP9088 13/16”-16 1/2” 15/16” 46,0 37,0
710.FSP90108 1”-14 1/2” 1.1/8” 50,0 45,0
710.FSP901010 1”-14 5/8” 1.1/8” 60,0 47,0
710.FSP901212 1.3/16”-12 3/4” 1.1/4” 67,0 55,0
710.FSP901612 1.7/16”-12 3/4” 1.5/8” 72,0 70,0
710.FSP901616 1.7/16”-12 1” 1.5/8” 86,0 27,0
710.FSP901410 T.H. FSP90 14-10 FÊMEA ORS SEM CAPA
