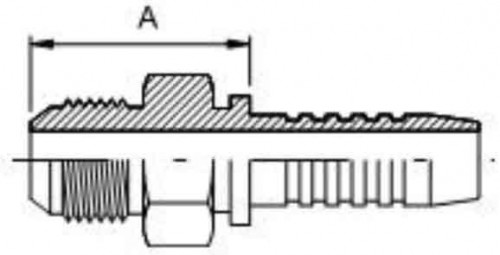

TERMINAL MACHO FIXO - ROSCA UNF SEDE JIC 37 GRAUS ELKA
DESCRITIVO
CÓDIGO BG: ROSCA MANG. A SEXT.
UNF mm
710.MJ44 7/16”-20 1/4” 26,5 1/2”
710.MJ54 1/2”-20 1/4” 26,5 9/16”
710.MJ64 9/16”-18 1/4” 26,5 9/16”
710.MJ66 9/16”-18 3/8” 27,5 5/8”
710.MJ86 3/4”-16 3/8” 32,5 3/4”
710.MJ88 3/4”-16 1/2” 33,0 3/4”
710.MJ106 7/8”-14 3/8” 34,5 7/8”
710.MJ108 7/8”-14 1/2” 35,0 7/8”
710.MJ1010 7/8”-14 5/8” 35,0 1”
710.MJ1012 7/8”-14 3/4”
710.MJ128 1.1/16”-12 1/2” 40,0 1.1/8”
710.MJ1210 1.1/16”-12 5/8” 40,0 1.1/8”
710.MJ1212 1.1/16”-12 3/4” 40,0 1.1/8”
710.MJ1412 1.3/16”-12 3/4” 40,5 1.1/4”
710.MJ1612 1.5/16”-12 3/4” 43,0 1.3/8”
710.MJ1616 1.5/16”-12 1” 43,5 1.3/8”
710.MJ2016 1.5/8”-12 1” 47,0 1.3/4”
710.MJ2020 1.5/8”-12 1.1/4” 48,5 1.3/4”
